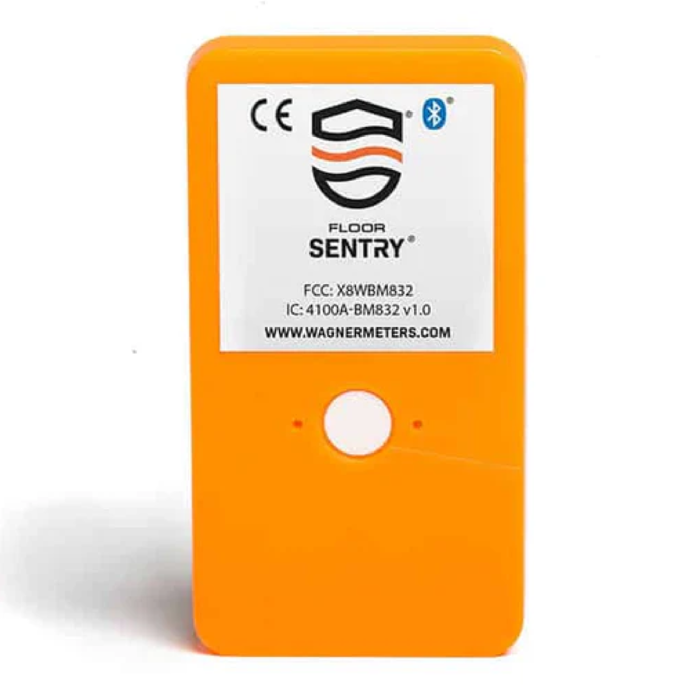

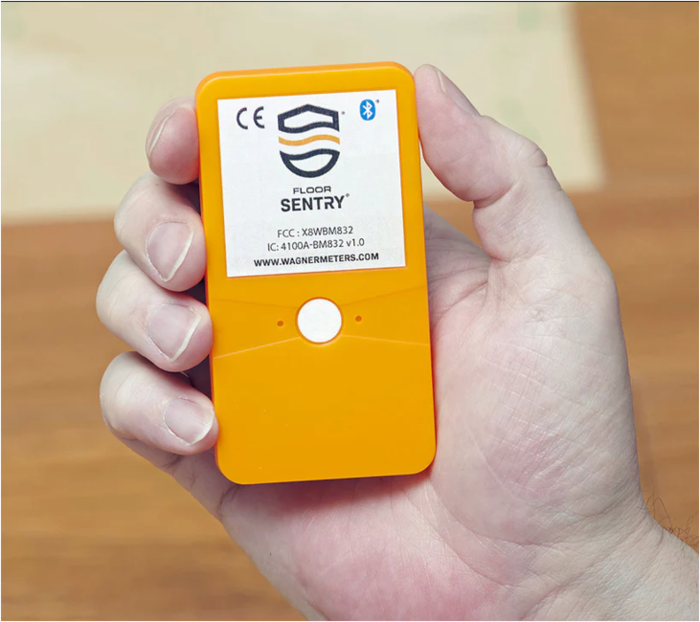

Wagner Floor Sentry Wood Floor Data Logger


The Floor Sentry® embedded wood floor data logger is a card-sized device featuring temperature and relative humidity (RH) sensors to monitor and record up to 16,000 internal temperature and RH readings within your wood floor as well as the temperature and RH on the surface of the concrete subfloor or underlayment. Floor Sentry connects, via Bluetooth, to the free Wagner Sentry app for instant monitoring of floor or underlayment conditions, setting alarm threshold levels, viewing graphed progress, and more. This device can protect your installation liability and your wood floor investment.

  • Top and Bottom Sensors - Measure temperature and relative humidity (RH) within your wood floor and subfloor.
  • Smart App Integration - Store, organize, and send readings directly to the free Wagner Sentry app via Bluetooth®. Monitor wood floors effortlessly on your smart device.
  • Alerts or Notifications - When RH or temperature is outside the user-defined alarm threshold.
  • Data Collection and Storage - Monitor, record, and store over 16,000 internal temperature and relative humidity (RH) readings within your wood floors.
  • Long Battery Life - A pre-installed battery that can last up to 8 years (depending on the frequency of logging).
  • Comprehensive Wood Floor Monitoring with Smart Logger V2 - Pairing your Floor Sentry and Smart Logger V2 to the Wagner Sentry app allows you to view both the in-floor conditions, enabling users to easily view, transmit, record data, and even send reports via email.
  • 1-Year Warranty - With Wagner’s 1-year warranty, you can trust the Floor Sentry to deliver consistent, precise readings for years to come.
  • Lifetime Customer Support - When you choose to purchase a product with Wagner Meters, you receive more than just the product, but lifelong customer support that will help satisfy your needs and troubleshooting.
  • Protects flooring installations from potential moisture risk.
  • Reduces liability and costly callbacks.
  • Teaches homeowners how to properly care for their wood floor investments.
  • Having a “smart floor” can give you a competitive edge in the flooring industry, allowing installers and homeowners the opportunity to monitor and prevent moisture damage.
Step 1

Step 1

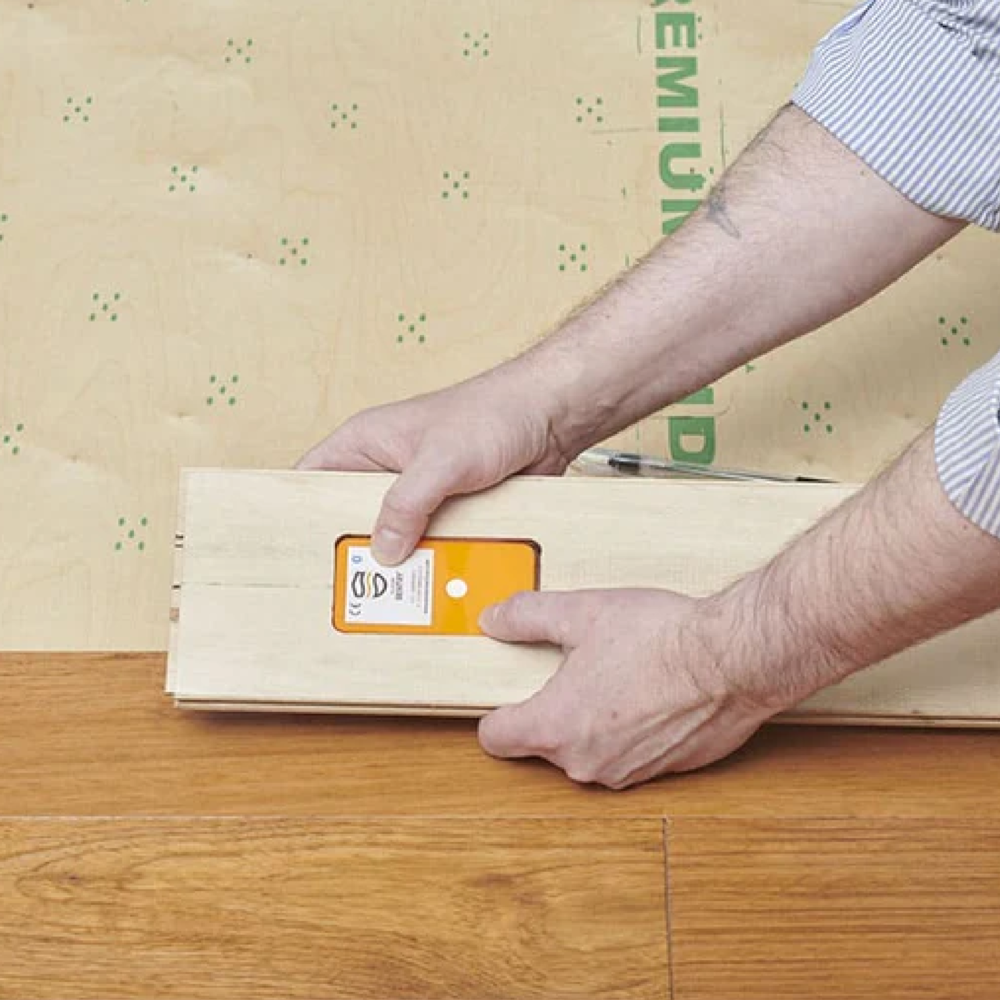

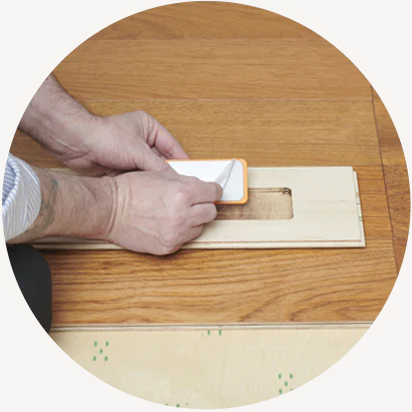

INSTALL by using a router to carve out a small section under a flooring plank and place the Floor Sentry into the routed area.
step 2

Step 2

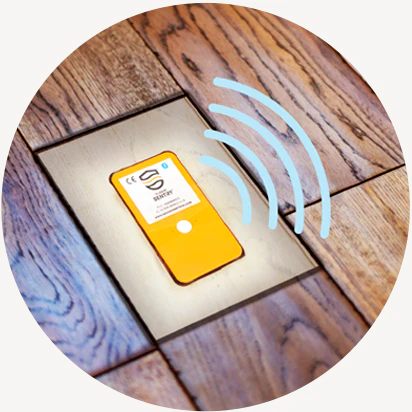

CHOOSE the best location to place your Floor Sentry device. Consult the manual to help determine a strategic location for placement.
step 3

Step 3

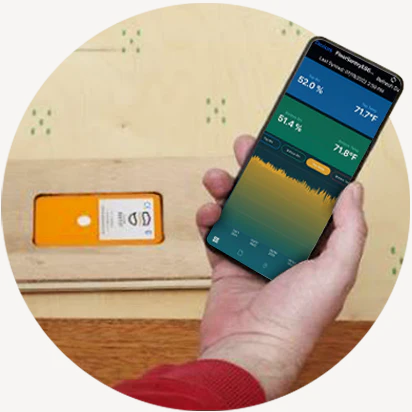

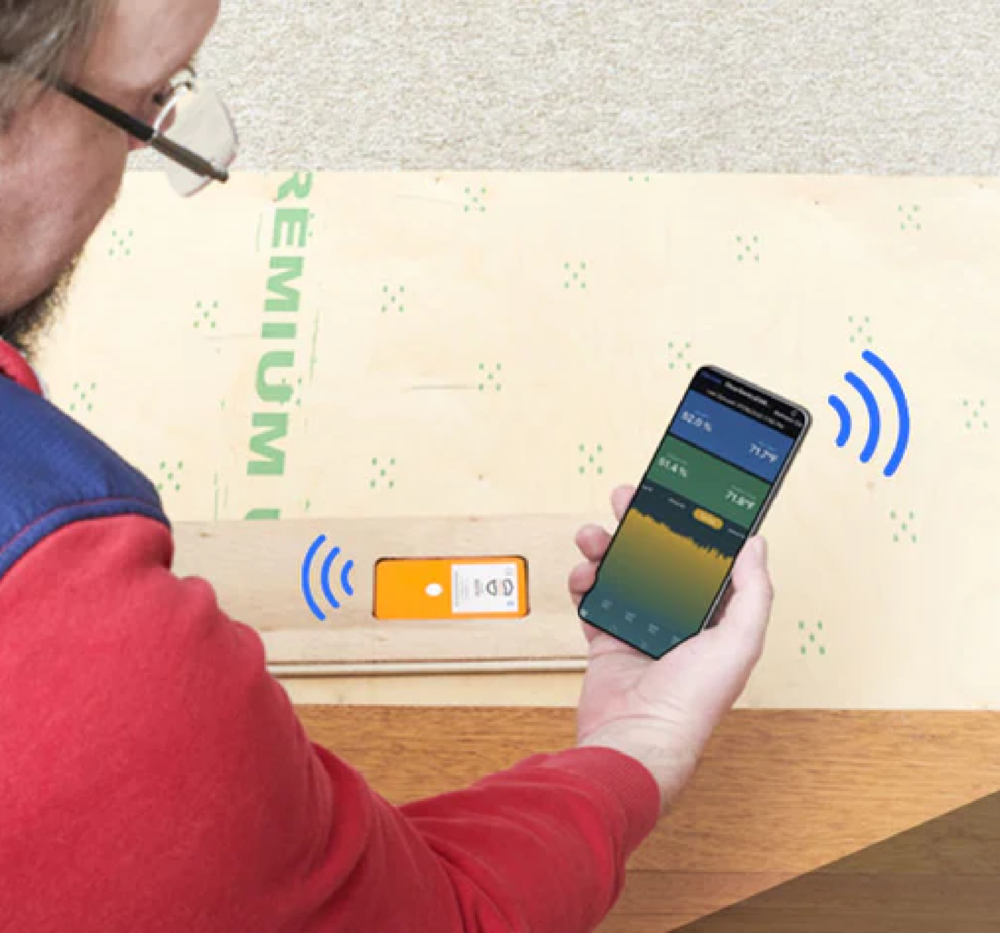

PAIR your device with the complementary Wagner Sentry app to configure it for monitoring RH and temperature, set alarm thresholds, and much more.

Frequency: 2.4 GHz

Protocol: BLE 5

Typical Reading Range: up to 20 ft or 6 meters

Dimensions: 51 mm x 95.454 mm x 9 mm

Weight: 37.75 g, 1.33 oz

Lifetime of Battery Pack: Up to 8 years (depending on frequency of logging)

Battery Health Indicator: Monitors battery status within the app

Storage Capacity: 16,384 readings

Measurement Interval: 1 second to 136 years

Mobile App Compatibility: Wagner Sentry App

Warranty: 1-year

Sensor Specifications

Relative Humidity - Accuracy Tolerance: ±3% RH (typ.)

Relative Humidity - Resolution: 0.1% RH

Temperature - Accuracy Tolerance: ±0.1° C (typ. 20° C to 60° C)

Temperature - Resolution: 0.1° C (typ.)

Temperature -  Repeatability: 0.04° C (high, typ.)
