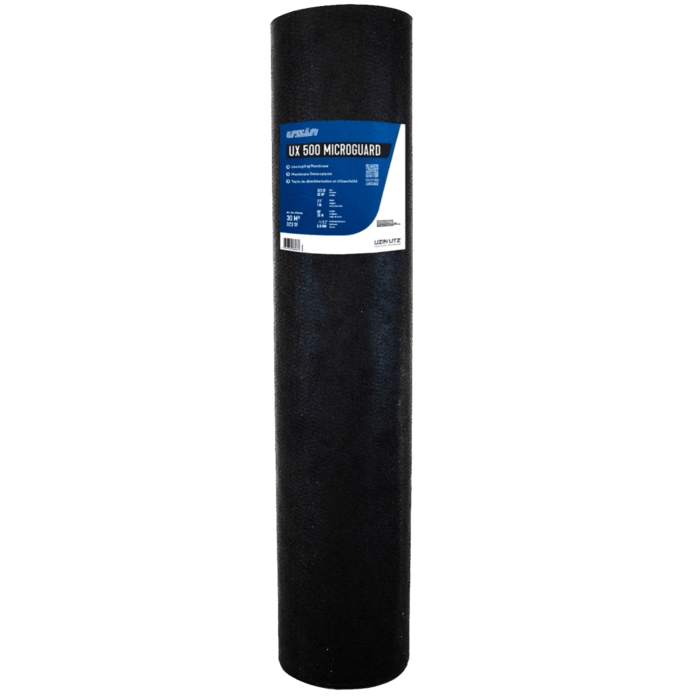

Uzin UX500 Microguard

UZIN UX 500 MICROGUARD is a lightweight, high-performance tile underlayment designed for crack isolation, waterproofing, and vapor management in residential, commercial, and industrial installations. Its thin, installer-friendly design rolls out flat with no memory effect and provides a smooth surface that's easy to cut, fit, kneel, and trowel on.

UX 500 MICROGUARD can be installed over concrete, gypsum substrates, and qualifying single-layer plywood or OSB subfloors, eliminating the need for traditional tile backerboard in approved applications. Tile can be installed immediately over the membrane, helping keep projects moving without unnecessary downtime.

• Provides crack isolation for up to 1/8" (3 mm) of in-plane movement

• Lightweight, thin-profile design for easier handling and installation

• Rolls out flat with no memory effect

• Uses approximately 50% less thin-set than geometrically configured membranes

• Suitable for wet and dry interior tile and stone installations

• Can replace traditional backerboard over qualifying wood subfloors

• Waterproof from above when seams and perimeter details are properly treated

• Helps manage vapor from the substrate below

• Suitable for most radiant heat floor applications

• Compatible with select UZIN cement- and resin-based setting mortars

  • Tile and stone interior installations for wet and dry areas
  • Over UZIN priming and surface preparation systems
  • Single-layer tongue-and-groove plywood subfloors 5/8” (15.75 mm) or thicker on joists up to 19.2” (49 cm) O.C., eliminating backerboards (See important notes)
  • Concrete and gypsum substrates to isolate the tile from the floor assembly
  • Once young concrete substrates are walkable and there is no standing water
  • Crack isolation underlayment to handle up to 1/8” (3 mm) in-plane movement
  • Suitable for most radiant heat floor applications (see substrate requirements)
  • Residential, commercial, and industrial applications
  • Compatible with UZIN CX 15, 20, 30, 33, and 38 cement-based tile-setting mortars and UZIN TR 400 resin-based setting mortar
  • For topical waterproof integrity, UZIN WP Seam Tape bonded with UZIN CX 15, 20, 30, 33, and 38 or UZIN HS 200 is recommended for seams and perimeter details. It is also compatible with UZIN HS 100 for seams and perimeter details


  • Installer-friendly - Extremely lightweight, easy to carry, fit, cut, & flatter surface to kneel and trowel on
  • No Memory Effect - Rolls out flat immediately
  • Thin Profile - Reduced overall thickness & uses ~50% less thin-set than geometrically configured membranes
  • Fast-Track Installation - Can be installed over young concrete & gypsum substrates with tile able to be installed immediately on top of the membrane
  • Underlayment Grade - Replaces traditional tile backerboards over single layer plywood or OSB subfloors
  • Waterproof and Vapor Management - Allows vapor to equalize from the underside, but waterproof from the top when seams and perimeter are treated


323 sf per Roll

26 Rolls per Pallet
